Safety and Route Type
The Bicyclists’ injuries & the cycling environment (BICE) study investigated whether route characteristics increased or decreased cycling injury risk. The study took place in Toronto and Vancouver, and the participants were adults injured while bicycling and treated at five hospital emergency departments.

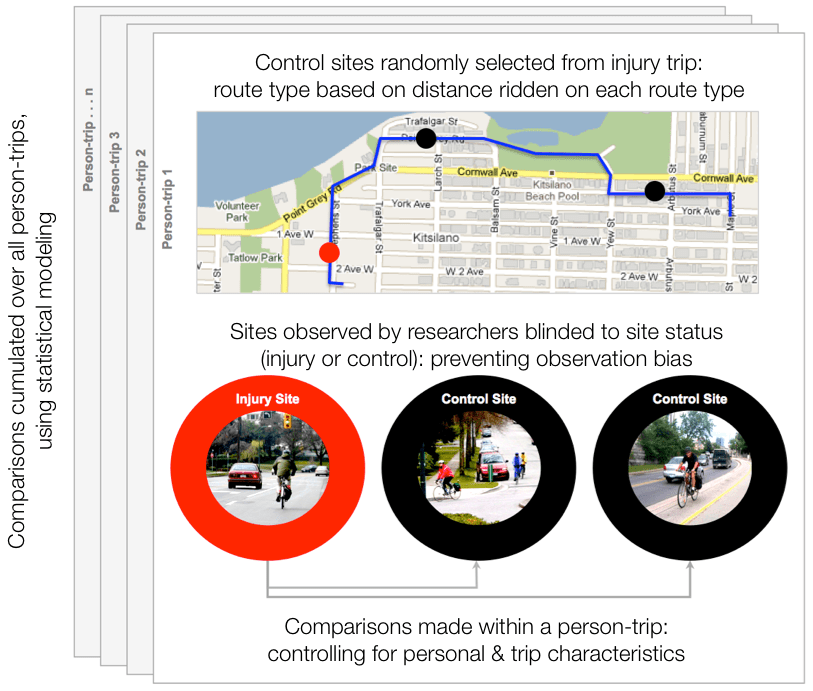

The study’s unique “case-crossover” design is shown in the figure below. It focused on infrastructure characteristics and controlled for exposure. Interviewers queried 690 injured participants about their trip route. Blinded site observers documented route characteristics at the location where the injury event occurred and at two randomly selected locations on the same trip route where no injury occurred (2,070 sites in total). The analysis compared transportation infrastructure at the injury and non-injury sites within each person-trip, cumulated over all trips. This method matched on personal and trip characteristics, thus removing the influence of potential confounders such as age, gender, propensity for risk-taking, bicycle type, clothing conspicuity, lights, helmet use, weather, and time of day.
A copy of study files are here.
Of the 690 injured cyclists in the study, 59% were male. The injury trips were mainly on weekdays (77%), less than 5 km long (68%), and for utilitarian purposes (74%). Of the injury events, 72% were collisions (with motor vehicles, route features, people, or animals) and 28% were falls.
We found that route infrastructure does affect the risk of cycling injuries, with risk differences of up to 10-fold. The design was able to compare 14 route types and many other infrastructure features, providing one of the most detailed pictures to date of the relative safety of built environments for cycling.
The following features were the safest:
- cycle tracks (also known as “separated” or “protected” bike lanes) alongside major streets
- residential street bike routes with traffic diversion
- bike lanes on major streets where there were no parked cars
- off-street bike paths
- intersections with motor vehicle speeds up to 30 km/h
- residential street intersections
The following infrastructure features were the least safe:
- major streets with no bike infrastructure and parked cars
- major streets with sharrows (shared car-bike lanes)
- major streets with painted bike lanes between parked and moving cars
- sidewalks and multiuse paths
- streetcar or train tracks
- downhill grades
- major street intersections
- intersections with traffic speeds greater than 30 km/h
- traffic circles at residential street intersections
- arriving at an intersection in the direction opposite to traffic
Are safe routes preferred routes?
In our earlier study of route types that motivate and deter cycling, we found that people preferred to ride on bike-only paths, multi-use paths, residential street bike routes, and cycle tracks. They preferred NOT to ride on major streets.

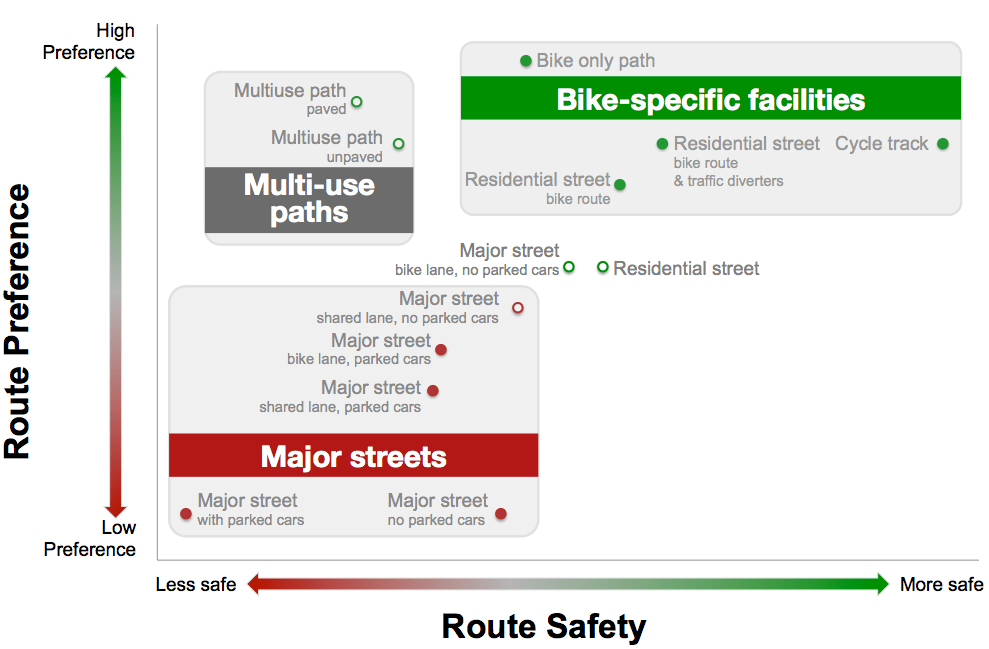

The graph to the left compares our injury study results on route safety to the results on route preferences. Preferences and safety largely agree. Major streets are less safe and not preferred. Bike-specific routes are safer and preferred. The main disagreement was that multi-use paths are preferred, but were not particularly safe. Multi-use and bike-only paths could be made safer by making them straighter so sight lines are better, by removing obstacles like bollards, and by providing lighting at night.

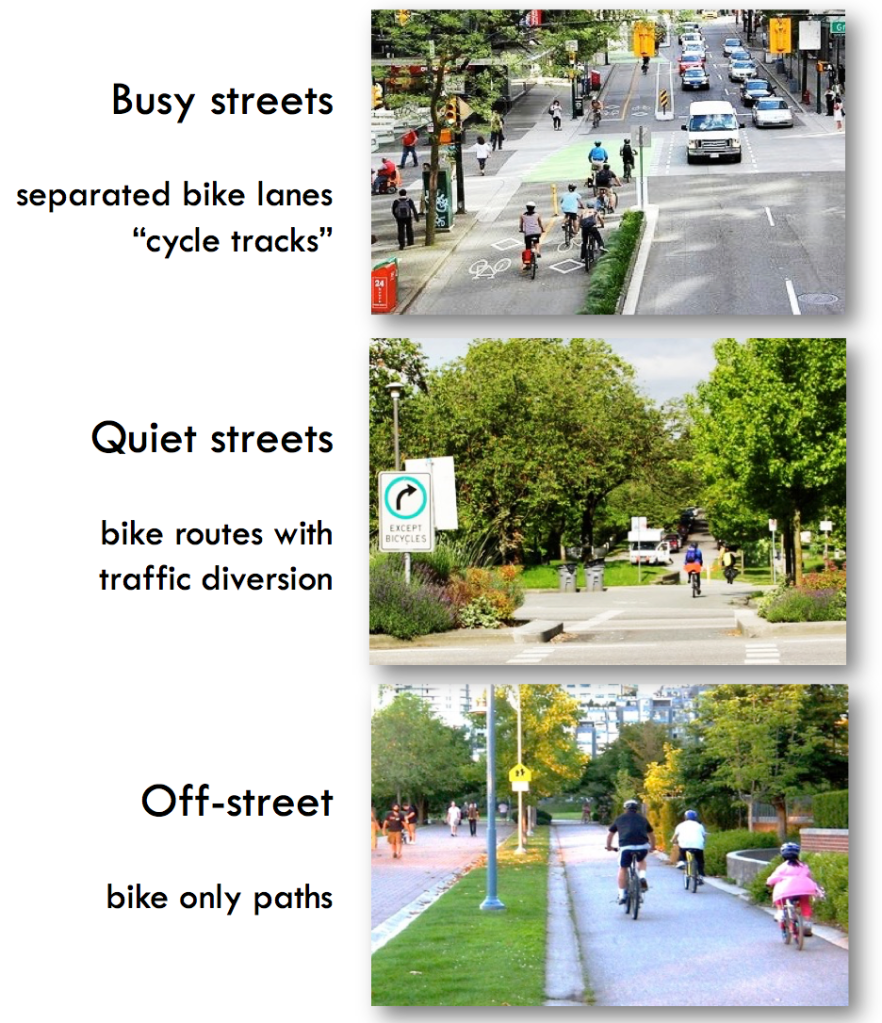

The photos to the left illustrate the safest infrastructure for each of three types of route.
These results provide sound evidence for transportation planners, allowing them to select cycling infrastructure that will improve cycling safety. This should not only reduce the risk of traumatic injuries to cyclists, but, as a result, promote cycling as an urban transportation option, with attendant personal and public health benefits.
- Our injury study methods were presented at the Transportation Research Board Annual Meeting in Washington, DC, January, 2011. [poster]
- Cripton PA, Shen H, Brubacher JR, Chipman M, Friedman SM, Harris MA, Winters M, Reynolds CCO, Cusimano MD, Babul S, Teschke K. (2015). Severity of urban cycling injuries and the relationship with personal, trip, route and crash characteristics: Analyses using four severity metrics. BMJ Open ;5: e006654. [article]
- Teschke K, Harris MA, Reynolds CCO, Winters M, Babul S, Chipman M, Cusimano MD, Brubacher J, Friedman SM, Hunte G, Monro M, Shen H, Vernich L, Cripton PA. (2012). Route infrastructure and the risk of injuries to bicyclists: A case-crossover study. American Journal of Public Health;102:2336-2343. [article & supplementary figure]
- Harris MA, Reynolds CCO, Winters M, Chipman M, Cripton PA, Cusimano MD, Teschke K. (2011). The Bicyclists’ Injuries and the Cycling Environment study: A protocol to tackle methodological issues facing studies of bicycling safety. Injury Prevention;17(5):e6. [abstract]
- Harris, M. A., Reynolds, C. C., Winters, M., Cripton, P. A., Shen, H., Chipman, M. L., … & Teschke, K. (2013). Comparing the effects of infrastructure on bicycling injury at intersections and non-intersections using a case–crossover design. Injury Prevention, 19(5), 303-310. [article]
- Winters M, Babul S, Becker HJEH, Brubacher JR, Chipman M, Cripton PA, Cusimano MD, Friedman SM, Harris MA, Hunte G, Monro M, Reynolds CCO, Shen H, Teschke K. (2012). Safe cycling: How do risk perceptions compare with observed risk? Canadian Journal of Public Health, 103:S42-S47. [article]
- Teschke K, Frendo T, Shen H, Harris MA, Reynolds CCO, Cripton PA, Brubacher JR, Cusimano MD, Friedman SM, Hunte G, Monro M, Vernich L, Babul S, Chipman M, Winters M. (2014). Bicycling crash circumstances vary by route type: a cross-sectional analysis. BMC Public Health ;14:1205. [article]
- Teschke K, Brubacher JR, Friedman SM, Cripton PA, Harris MA, Reynolds CCO, Shen H, Monro M, Hunte G, Chipman M, Cusimano MD, Smith Lea N, Babul S, Winters M. (2012). Personal and trip characteristics associated with safety equipment use by injured adult bicyclists: A cross-sectional study. BMC Public Health;12:765. [article]
- Teschke, K., Dennis, J., Reynolds, C. C., Winters, M., & Harris, M. A. (2016). Bicycling crashes on streetcar (tram) or train tracks: mixed methods to identify prevention measures. BMC public health, 16(1), 1-10. [article]
PARTNERS & FUNDING
The study was funded by the Heart and Stroke Foundation of Canada and the Canadian Institutes of Health Research in 2007. It was designed by a team of students and faculty of the Bridge Strategic Training Program.
